Selected 24 Port Fiber Termination Box for your Fiber Network
If you are looking for fiber termination box of 24 pigtails splicing, Then look no further, Bativ offers you most suitable fiber boxes, Samples are free to test.
Factory Price
Working Hard
Quality Assurance

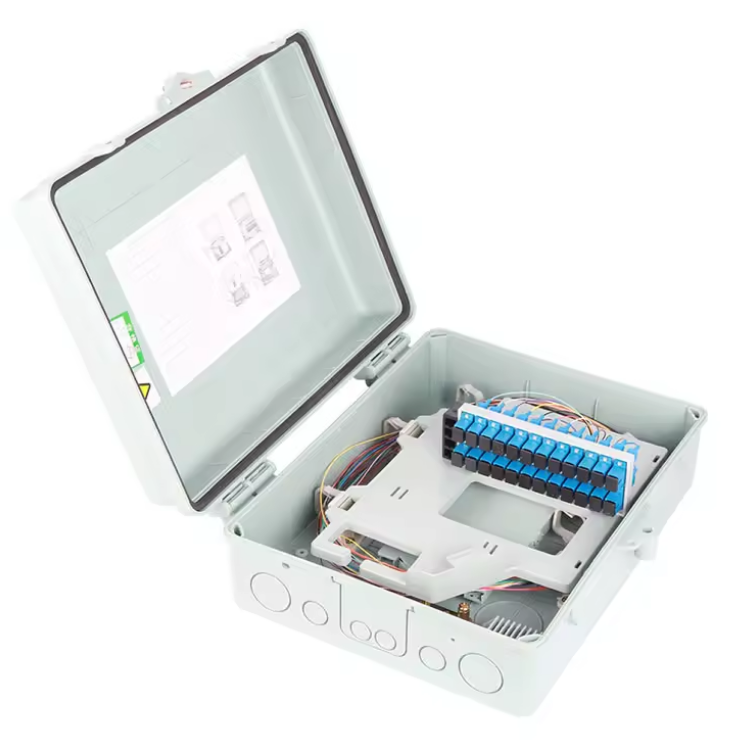

24 Port Wall mount Fiber Termination Box
This 24 Port Fiber Termination Box is designed for 24 sc fiber pigtails splicing with drop cable, Easy to install and coming with locks for protection.
| Dimension | 330*240*100 mm |
| Inlet/Outlet ports | 2/24 |
| Weight | 1.3kg |
| Inlet port type | mid-span access |
| Heat shrink capacity | 24 |
| PLC type | mini PLC; insertion type |

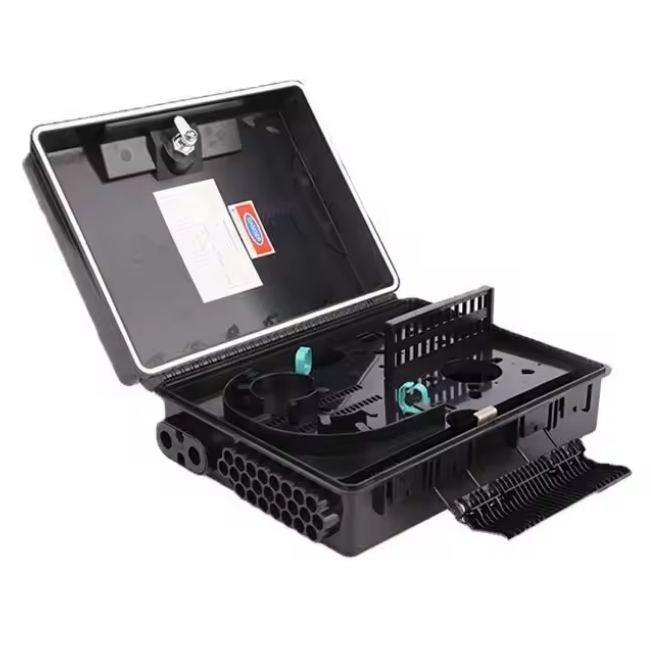

24 Port Floor Wall Mount Fiber Termination Box
This 24 Port Fiber Termination Box is designed for 12 sc fiber pigtails splicing with drop cable, Easy to install and coming with locks for protection.
| Product Name | waterproof indoor/outdoor fiber distribution box |
| Material | PC+ABS |
| Color | grey |
| Dimension | 430X280X130mm |
| Entrance | 2input 2 output |
| Used | wall mount or pole mount |
24 Port Wall mount Fiber Termination Box
This 24 Port Wall mount Fiber Termination Box is designed for 24 sc fiber pigtails splicing with drop cable, Easy to install and coming with locks for protection.
| Use | SC Pigtail splicing with drop cable |
| Color | White |
| Dimensions | 300*230*120mm |
| 1Weight | 1.9kg |
| Material | ABS |
| Inlet/Outlet ports | 2 ports+24 ports drop cables |

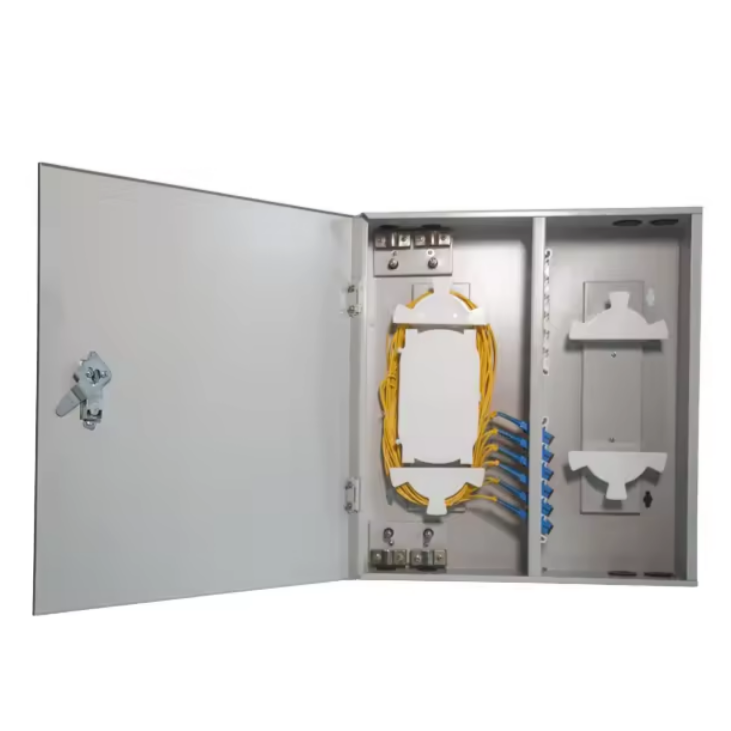

24 Port Floor Wall Mount Fiber Termination Box
This 24 Port Floor Fiber Termination Box is designed for 24 sc fiber pigtails splicing with drop cable.
| Product Name | waterproof indoor/outdoor fiber distribution box |
| Material | Cold Roll Steel |
| Weight | 5.30KG |
| Dimension | 465*420*160mm |
| Entrance | 2input 2 output |
| Used | wall mount or pole mount |
24 Port Rack Mount Sliding type Fiber Termination Box
| Suitable Adapters | SC/APC SC/UPC |
| Material | Cold Rolled Steel Plate |
| Weight | 5900g |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 24 Port Simplex or Duplex |
| Installation way | Rack Mount |
| Dimensions | 430mmx250mmx1U |
Wholesale 24 ports fiber termination box
Bativ can support many FTTx solutions with engineering designs, technical support, and end-to-end product offerings including fiber termination box, fiber wall socket, ftth fiber assemblies etc. Bativ makes FTTx easy from the headend to the end user (residential, MDUs, commercial, etc.) Our customized FTTx fiber termination box combines your input with our expertise to configure the solution that is right for your application.
