Selected 48 Port Fiber Termination Boxes for your Projects
If you are looking for 48 Port Fiber Termination Box from China, Contact Bativ to help you in this case, You will get a satisfactory solution always.
Factory Price
Working Hard
Quality Assurance
48 Port SC Wall Mount Fiber Termination Box
This 48 Port Fiber Termination Box is designed for pigtail splicing with 48 ports sc connection. Suitable for wall mount.
| Model No | FTB48A |
| Dimension ( L×W×H )mm | 420X320X132 |
| Function | cable terminal, passive splitter |
| Adaptor type | SC /LC |
| Material | PC+BAS |
| Max PLC splitter ratio | 1:16, 1:32 |
| Max capacity(F) | 48 |
| IP protection | IP65 |
| Color | White, light grey, black |

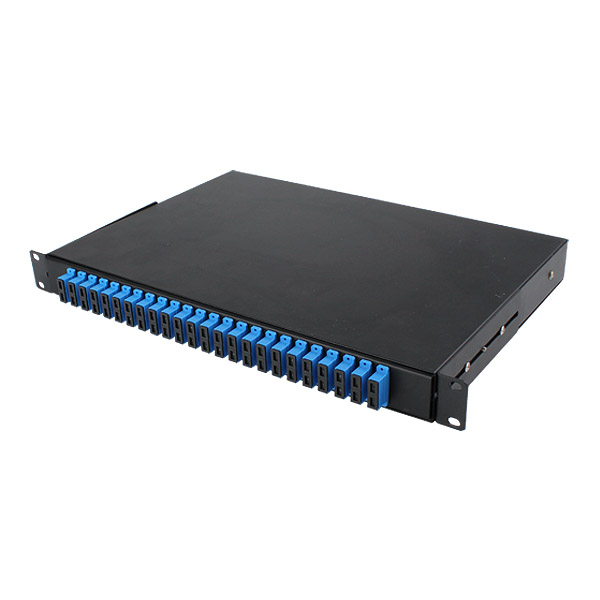

48 Port 19″ 1U Rack mount Fiber Terminal Box
This 48 Port 19″ 1U Rackmountable Enclosure Terminal Box is designed for pigtail splicing with 48 ports sc connection. Suitable for rack mount.
- Free Fiber Optic Patch Panel 48 Port Sample in Stock
- 1.2mm High Grade Cold Rolled Steel Plate
- Loaded or Unloaded Fiber Adapters & Pigtails
- Smart Design in Cabling Space
- 48 fibers or 96 fibers as per your requirement
- 100% Money Refund or Replacement with Unsatisfaction

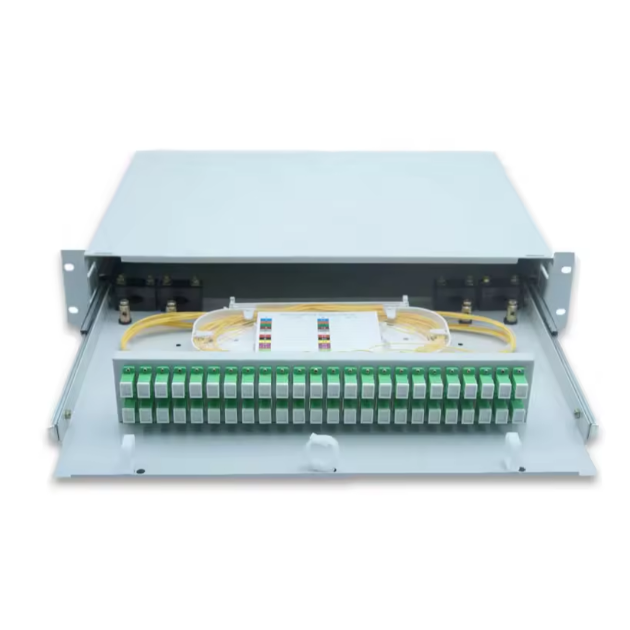

48 Port 19″ 2U Rackmountable Enclosure Terminal Box
This 48 Port 19″ 1U Rackmountable Enclosure Terminal Box is designed for pigtail splicing with 48 ports sc connection. Suitable for rack mount.
| Model No | Size（mm） | Capacity (single core) | Capacity (double core) |
| GPZ/JJ-CLD-1U | 482*300*45 | 24 | 48 |
| GPZ/JJ-CLD-2U | 482*300*90 | 48 | 96 |
| GPZ/JJ-CLD-4U | 482*300*180 | 144 | 288 |

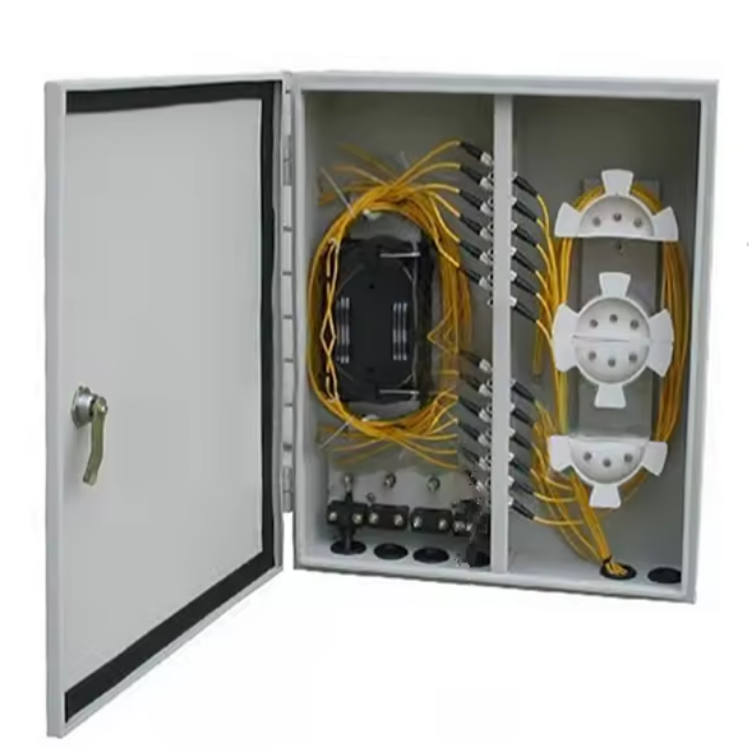

48 Port 2U Wall Mount Enclosure Terminal Box
This 48 Port floor wall mount Enclosure Terminal Box is designed for pigtail splicing with 48 ports sc connection.
| Fiber Counts | 12/24/36/48/72/96/144 Core |
| Product Dimension (cm) | 49*30.5*8.9cm or can be customized |
| Connector Type | SC/ST/FC/LC |
| Material | SMC/Cold rolled steel |
| Color | Grey/White |
| Protection Grade | IP65 |
